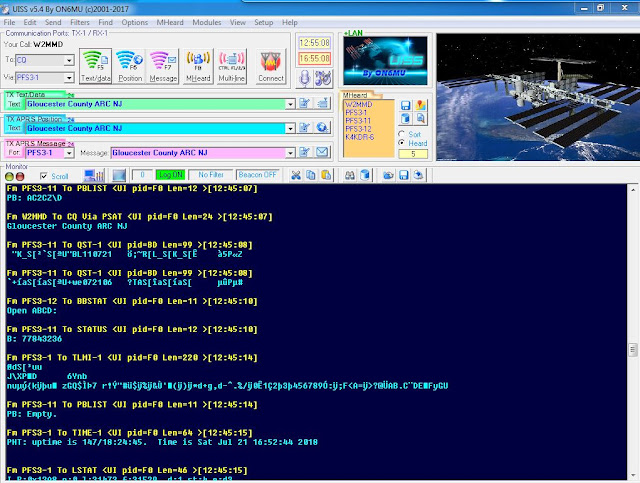

So after a little more research I found that WISP isn’t the only program that can read the Falconsat data. UISS will also work using the 9600 baud modem. Here’s how it looks:
Unfortunately transmitting isn’t as easy – you need to pipe the audio into the packet input port on the 847, and we don’t yet have a cable to do that nor do we know how to set the RigBlaster to use that input instead of the mic. More research to do.
7/31/18 – Here’s a great reference: http://aprs.org/PFS3.html
Here’s much more on setting up the Soundmodem and other stuff: http://www.microsofttranslator.com/BV.aspx?ref=IE8Activity&a=http%3A%2F%2Fwww.qsl.net%2Fpy4zbz%2Ffalconsat.htm

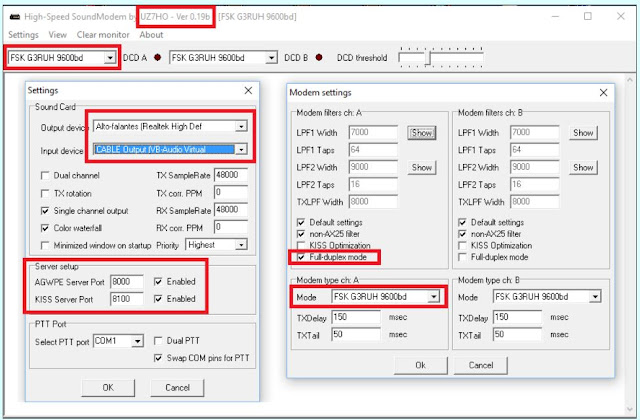

8/2/18 – be sure that the model settings are like this:

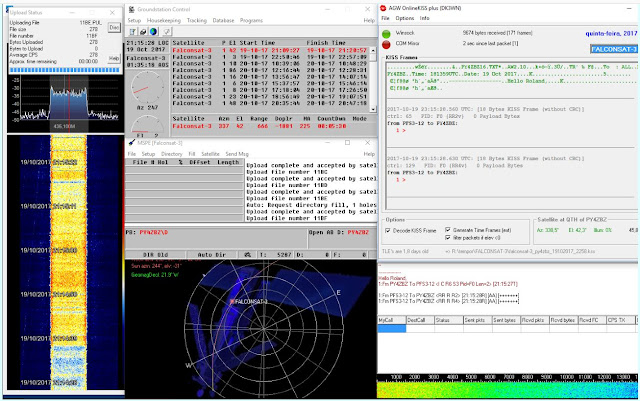

The whole picture should look like this:
More WISP info is here: http://www.ne.jp/asahi/hamradio/je9pel/wispinsv.htm
Old TLE:
FALCONSAT-3
1 30776U 07006E 17265.88227951 .00002651 00000-0 83127-4 0 9998
2 30776 35.4357 166.6005 0002067 143.4619 216.6248 15.32857285583257
UPLINK: 145.840MHz 9600bps GMSK
DNLINK: 435.103MHz 9600bps GMSK
Broadcast Callsign = PFS3-11
BBS Callsign = PFS3-12
Unproto APRS via PFS3-1
More great links: http://www.ne.jp/asahi/hamradio/je9pel/wispvsp3.htm
http://www.ne.jp/asahi/hamradio/je9pel/falcons3.htm
http://www.ne.jp/asahi/hamradio/je9pel/wispinsv.htm
